I have more ideas for Stable Diffusion. My nights and weekends are consumed! This time: For inpainting, why create a mask image manually, when A.I. can automatically build a mask from a text prompt? Someone much smarter has already published a paper (arXiv:2112.10003 [cs.CV]), with source code, to do just this!

Background

I first got the idea from a Reddit post that mentioned ThereforeGames’ txt2mask add-on for AUTOMATIC1111’s Stable Diffusion Web UI. A quick look revealed that the heavy lifting is done by Timo Lüddecke’s CLIPSeg for “Image Segmentation Using Text and Image Prompts”.

To summarize: this post is adds txt2mask capabilities, building on my previous code which added inpainting with a mask+txtimg, which is based on my simplified Python script that merged Stable Diffusion’s txt2img and img2img capabilities! All-in-one... txt2mask+txtimg2img?

This is part 5 in what is turning out to be a series - skip to post 6 for the latest code:

  1. (16 Sep 22): AI-generated images with Stable Diffusion on an M1 mac a.k.a. txt2img
  2. (17 Sep 22): Stable Diffusion image-to-image mode a.k.a. img2img
  3. (21 Sep 22): My simplified Stable Diffusion Python script a.k.a txtimg2img
  4. (26 Sep 22): Stable Diffusion script with inpainting mask a.k.a. mask+txtimg2img
  5. (28 Sep 22): this post: Adding CLIPSeg automatic masking to Stable Diffusion a.k.a. txt2mask+txtimg2img
  6. (9 Oct 22): myByways Simple-SD v1.0 Python script

As usual I don’t understand the models, I just use them... usual warnings and disclaimers ally: do not run my code blindly, etc.

My slightly more complex Python code

CLIPSeg was surprisingly easy to incorporate into [my script]((/blog/my-simplified-stable-diffusion-python-script). I didn’t feel like re-structuring the script, so instead I just added functions the load CLIPSeg and create a file mask. This file is then read by the existing code without further changes. A few challenges around merging the masks from multiple prompts, and flattening the mask with a threshold. And addressing this issue: I noticed the resulting images leave a vague outline or halo of the original objects, because the mask I generate with CLIPSeg is maybe a little off at the edges. Being lazy, I just imported cv2 and implemented Erosion and Dilation of images using OpenCV.

This time, it’s mostly my algorithms, though a little hack-y... but I am proud and pretty pleased with what I have achieved so far (though I do intend to improve it further). So:

  • load_clipseg() simply loads the model, I am using CPU because MPS does not make much difference
  • if MASK variable if it is a List (array), then create_mask() will:
    • load the mask prompts from the MASK array (otherwise, it’s a string PNG mask filename)
    • run the prompts through the CLIPSeg model, and then sum the outputs values (i.e. merging more than one prompt)
    • normalize and compress the output values (range 0-1): I am undecided between a single arbitrary THRESHOLD (black and white), or two THRESHOLDS (grayscale) - both options are still present in my code (methinks the former will do)
    • save the file...
  • and if DILATE is set, then dilate_mask() will:
    • load the image using OpenCV
    • perform the dilate,
    • save the image, overwriting the previous file...

To setup, see my previous posts where I installed Stable Diffusion on a M1 mac, and created my own simplified Python script. Then:

  • in the stable-diffusion folder, download CLIPSeg (via git clone or pip install)
  • then, download and unzip the weights (refer to CLIPSEG documentation for latest download)
  • finally, move clipseg_weights/rd64-uni-refined.pth to stable-diffusion/model
    # in the stable-diffusion folder
    pip install git+https://github.com/timojl/clipseg.git
    curl https://owncloud.gwdg.de/index.php/s/ioHbRzFx6th32hn/download --output weights.zip
    unzip w.zip -d model
  • edit the global variables before running...

Here’s the code:

#! python
# myByways simplified Stable Diffusion v0.3 - add clipseg

import os, sys, time
import torch
import numpy as np
from omegaconf import OmegaConf
from PIL import Image
from einops import rearrange
from pytorch_lightning import seed_everything
from contextlib import nullcontext
from ldm.util import instantiate_from_config
from ldm.models.diffusion.plms import PLMSSampler
from ldm.models.diffusion.ddim import DDIMSampler
from transformers import logging
from torchvision import transforms

from torchvision.utils import save_image as tv_save_image
from clipseg.clipseg import CLIPDensePredT
import cv2

PROMPTS = [         # --prompt, one or more in an array, one per output image
    'a photo of an old man in a tweed jacket and boots leaning on a fence, dramatic lighting',
]
NEGATIVES = [       # negative prompt, one or more, default None (or an empty array)
]

HEIGHT = 512        # --H, default 512, beyond causes M1 to crawl
WIDTH = 512         # --W, default 512, beyond causes M1 to crawl
FACTOR = 8          # --f downsampling factor, default 8

FIXED = 0           # --fixed_code, 1 for repeatable results, default 0
SEED = 42           # --seed, default 42
NOISE = 0           # --ddim_eta, 0 deterministic, no noise - 1.0 random noise, ignored for PLMS (must be 0)
PLMS = 0            # --plms, default 1 on M1 for txt2img but ignored for img2img (must be DDIM)
ITERATIONS = 1      # --n_iter, default 1
SCALE = 7.5         # --scale, 5 further -> 15 closer to prompt, default 7.5
STEPS = 50          # --ddim_steps, practically little improvement >50 but takes longer, default 50

IMAGE = '1.png'     # --init-img, img2img initial latent seed, default None
STRENGTH = 0.75     # --strength 0 more -> 1 less like image, default 0.75
MASK = [            # inpaint mask PNG where white=overwrite, black=retain, or an array of prompts for CLIPSeg, default=None
    'a woman'
]

FOLDER = 'outputs'  # --outdir for images and history file below
HISTORY = 'history.txt'
CONFIG = 'configs/stable-diffusion/v1-inference.yaml'
CHECKPOINT = 'models/ldm/stable-diffusion-v1/model.ckpt'

THRESHOLDS = 0.1    # CLIPSeg threshold to convert to black and white, or an array of 2 numbers
DILATE = 10         # number of pixels to dilate the mask by
CLIPSEG = 'models/clipseg_weights/rd64-uni-refined.pth'

def seed_pre():
    if not FIXED:
        seed_everything(SEED)

def seed_post(device):
    if FIXED:
        seed_everything(SEED)
        return torch.randn([1, 4, HEIGHT // FACTOR, WIDTH // FACTOR], device='cpu').to(torch.device(device.type))
    return None

def load_model(config, ckpt_file=CHECKPOINT):
    pl_sd = torch.load(ckpt_file, map_location='cpu')
    sd = pl_sd['state_dict']
    model = instantiate_from_config(config.model)
    model.load_state_dict(sd, strict=False)
    return model

def set_device(model):
    if torch.backends.mps.is_available():
        device = torch.device('mps')
        precision = nullcontext
    elif torch.cuda.is_available():
        device = torch.device('cuda')
        precision = torch.autocast
    else:
        device = torch.device('cpu')
        precision = torch.autocast
    model.to(device.type)
    model.eval()
    return device, precision

def load_image_mask(device, image_file=IMAGE, mask_file=MASK):
    image = Image.open(image_file).convert('RGB')
    w, h = image.size
    w, h = map(lambda x: x - x % 32, (w, h))
    image = image.resize((w, h), resample=Image.Resampling.LANCZOS)
    image = np.array(image).astype(np.float32) / 255.0
    image = image[None].transpose(0, 3, 1, 2)
    image = torch.from_numpy(image)
    image = 2. * image - 1.
    image = image.to(device.type)
    mask = None
    if MASK:
        mask = Image.open(mask_file).convert('L')
        mask = mask.resize((w // FACTOR, h // FACTOR), resample=Image.Resampling.LANCZOS)
        mask = np.array(mask).astype(np.float32) / 255.0
        mask = np.tile(mask, (4, 1, 1))
        mask = mask[None].transpose(0, 1, 2, 3)
        mask = torch.from_numpy(mask).to(device.type)
    return image, mask

def load_clipseg(weights_file=CLIPSEG):
    clipseg = CLIPDensePredT(version='ViT-B/16', reduce_dim=64, complex_trans_conv=True)
    clipseg.eval()
    clipseg.load_state_dict(torch.load(weights_file, map_location=torch.device('cpu')), strict=False)
    return clipseg

def create_mask(clipseg, image_file=IMAGE, prompt=MASK):
    transform = transforms.Compose([
        transforms.ToTensor(),
        transforms.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225]),
        transforms.Resize((WIDTH, HEIGHT)) ])
    image = transform(Image.open(image_file)).unsqueeze(0)
    size = len(MASK)
    with torch.no_grad():
        preds = clipseg(image.repeat(size,1,1,1), MASK)[0]
    image = torch.sigmoid(preds[0][0])
    for i in range(1, size):
        image += torch.sigmoid(preds[i][0])
    image = (image - image.min()) / image.max()
    if isinstance(THRESHOLDS, list):
        if len(THRESHOLDS) >= 2:
            image = torch.where(image >= THRESHOLDS[1], 1., image)
            image = torch.where(image <= THRESHOLDS[0], 0., image)
        else:
             image = torch.where(image >= THRESHOLDS[0], 1., 0.)
    else:
        image = torch.where(image >= THRESHOLDS, 1., 0.)
    mask_file = os.path.join(FOLDER, f'mask_{time.strftime("%Y%m%d_%H%M%S")}.png')
    tv_save_image(image, mask_file)
    return mask_file

def dilate_mask(mask_file):
    image = cv2.imread(mask_file, 0)
    kernel  = np.ones((DILATE, DILATE), np.uint8)
    dilated = cv2.dilate(image, kernel, iterations=1)
    cv2.imwrite(mask_file, dilated)
    return mask_file

def setup_sampler(model):
    global NOISE
    if IMAGE:
        sampler = DDIMSampler(model)
        sampler.make_schedule(ddim_num_steps=STEPS, ddim_eta=NOISE, verbose=False)
        image, mask = load_image_mask(model.device, IMAGE, MASK)
        sampler.t_enc = int(STRENGTH * STEPS)
        sampler.x0 = model.get_first_stage_encoding(model.encode_first_stage(image))
        sampler.z_enc = sampler.stochastic_encode(sampler.x0, torch.tensor([sampler.t_enc]).to(model.device.type))
        sampler.z_mask = mask
        if MASK:
            random = torch.randn(mask.shape, device=model.device)
            sampler.z_enc = (mask * random) + ((1-mask) * sampler.z_enc)
    elif PLMS:
        sampler = PLMSSampler(model)
        NOISE = 0
    else:
        sampler = DDIMSampler(model)
    return sampler

def get_prompts():
    global NEGATIVES
    if NEGATIVES is None:
        NEGATIVES = [''] * len(PROMPTS)
    else:
        NEGATIVES.extend([''] * (len(PROMPTS)-len(NEGATIVES)))
    return zip(PROMPTS, NEGATIVES)

def generate_samples(model, sampler, prompt, negative, start):
    uncond = model.get_learned_conditioning(negative) if SCALE != 1.0 else None
    cond = model.get_learned_conditioning(prompt)
    if IMAGE:
        samples = sampler.decode2(sampler.z_enc, cond, sampler.t_enc,
            unconditional_guidance_scale=SCALE, unconditional_conditioning=uncond,
            z_mask=sampler.z_mask, x0=sampler.x0)
    else:
        shape = [4, HEIGHT // FACTOR, WIDTH // FACTOR]
        samples, _ = sampler.sample(S=STEPS, conditioning=cond, batch_size=1,
            shape=shape, verbose=False, unconditional_guidance_scale=SCALE,
            unconditional_conditioning=uncond, eta=NOISE, x_T=start)
    x_samples = model.decode_first_stage(samples)
    x_samples = torch.clamp((x_samples + 1.0) / 2.0, min=0.0, max=1.0)
    return x_samples

def save_image(image):
    name = f'{time.strftime("%Y%m%d_%H%M%S")}.png'
    image = 255. * rearrange(image.cpu().numpy(), 'c h w -> h w c')
    img = Image.fromarray(image.astype(np.uint8))
    img.save(os.path.join(FOLDER, name))
    return name

def save_history(name, prompt, negative):
    with open(os.path.join(FOLDER, HISTORY), 'a') as history:
        history.write(f'{name} -> {"PLMS" if PLMS else "DDIM"}, Seed={SEED}{" fixed" if FIXED else ""}, Scale={SCALE}, Steps={STEPS}, Noise={NOISE}')
        if IMAGE:
            history.write(f', Image={IMAGE}, Strength={STRENGTH}')
        if MASK:
            history.write(f', Mask={MASK}')
        if len(negative):
            history.write(f'\n + {prompt}\n - {negative}\n')
        else:
            history.write(f'\n + {prompt}\n')

def main():
    global MASK
    print('*** Simple Stable Diffusion - myByways.com simple-sd version 0.3')
    logging.set_verbosity_error()
    os.makedirs(FOLDER, exist_ok=True)
    seed_pre()

    if isinstance(MASK, list):
        print(f'*** Loading CLIPSeg and creating mask')
        tic1 = time.time()
        clipseg = load_clipseg()
        MASK = create_mask(clipseg)
        if DILATE:
            MASK = dilate_mask(MASK)
        toc1 = time.time()
        print(f'*** CLIPSeg masking time: {(toc1 - tic1):.2f}s')
    if not PROMPTS:
        sys.exit(0)

    print(f'*** Loading Stable Diffusion')
    tic1 = time.time()
    config = OmegaConf.load(CONFIG)
    model = load_model(config)
    device, precision_scope = set_device(model)
    sampler = setup_sampler(model)
    start_code = seed_post(device)
    toc1 = time.time()
    print(f'*** Stable Diffusion setup time: {(toc1 - tic1):.2f}s')

    counter = 0
    with torch.no_grad():
        with precision_scope(device.type):
            with model.ema_scope():

                for iteration in range(ITERATIONS):
                    for prompt, negative in get_prompts():
                        print(f'*** Iteration {iteration + 1}: {prompt}')
                        tic2 = time.time()
                        images = generate_samples(model, sampler, prompt, negative, start_code)
                        for image in images:
                            name = save_image(image)
                            save_history(name, prompt, negative)
                            print(f'*** Saved image: {name}')

                        counter += len(images)
                        toc2 = time.time()
                        print(f'*** Synthesis time: {(toc2 - tic2):.2f}s')

    print(f'*** Total time: {(toc2 - tic1):.2f}s')
    print(f'*** Saved {counter} image(s) to {FOLDER} folder.')

if __name__ == "__main__":
    try:
        main()
    except KeyboardInterrupt:
        print('*** User abort, goodbye.')
    except FileNotFoundError as e:
        print(f'*** {e}')

Yesterday, CLIPSeg released a new -refined model! The output is less chunky and the mask has much smoother edges. Make sure you have the latest code!

To update CLIPSeg, I did a pip install --force-reinstall which was a big mistake. I ruined my setup, because the latest PyTorch nightly v1.13.0.dev20220927 is broken. My render time went from 1-2 minutes (MPS) to 10-15 minutes, despite no code change! I had to slowly re-trace my old version until I found the version that worked for me:

pip3 uninstall torch torchvision
pip3 install --pre torch==1.13.0.dev20220915 torchvision==0.14.0.dev20220915 --extra-index-url https://download.pytorch.org/whl/nightly/cpu

Sample Output

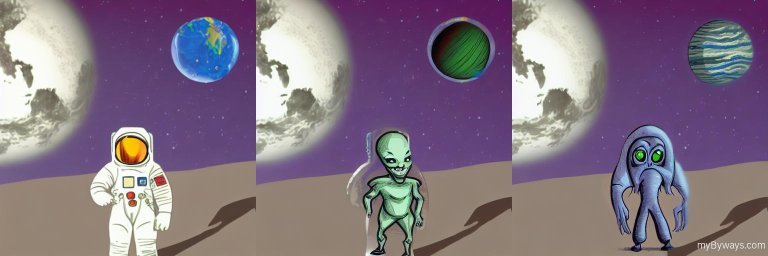

First, trying using my previous img2img trial, masking an astronaut and a planet and replacing it with a scary blue alien and the red planet jupiter in cartoon style. The first image is the original, the second is without DILATION and tweaking THRESHOLDS, and the third image is using a good mask.

Stable Diffusion using a mask generated with CLIPSeg - example 1

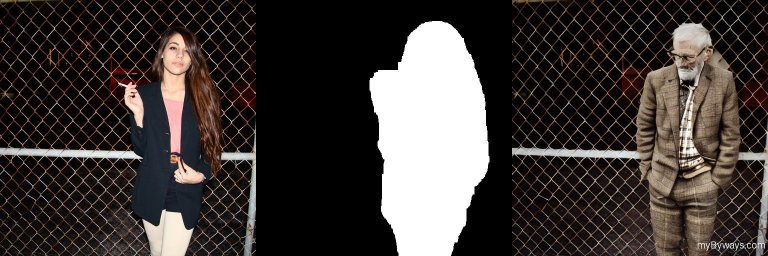

Next, using the sample image provided by Stable Diffusion: the first image is the original, the second is the mask generated with CLIPSeg for the prompt a woman, and the third image replaces the mask with a photo of an old man in a tweed jacket and boots leaning on a fence, dramatic lighting:

Stable Diffusion using a mask generated with CLIPSeg - example 2

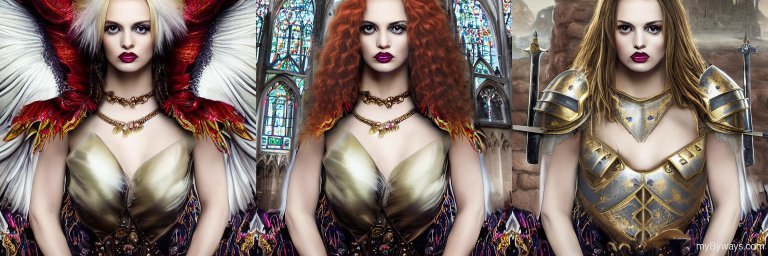

Here’s another example, using just prompts to both create the image, and then to mask and replace parts of the image. In the second image, I masked wings and hair, and in the third image I additionally masked gold dress.

Stable Diffusion using a mask generated with CLIPSeg - example 3

Incredible!
